Technology

Thermoblock aluminium + stainless steel

Fixed - Mobile filter holder

Solid hood

Professional filter holders

Pump 20 bar

3-way solenoid valve

Steam valve

Electronic technology

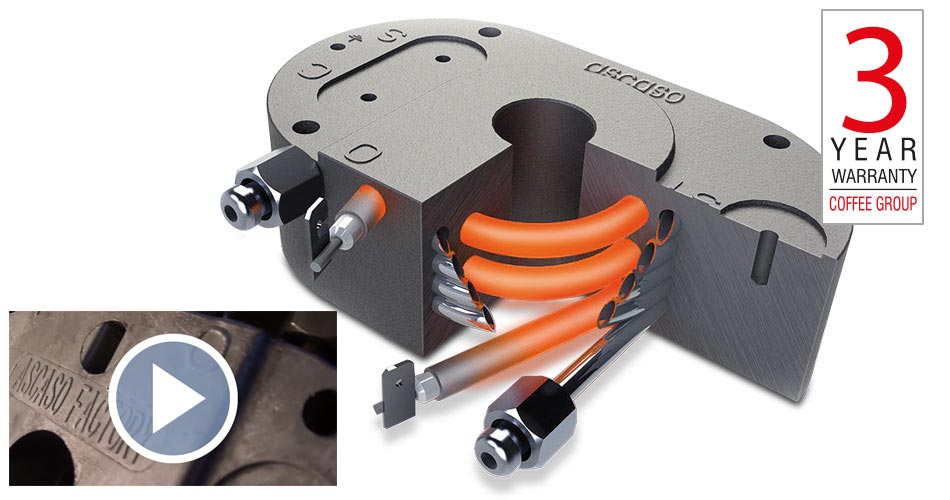

Thermoblock aluminium + stainless steel

Clean water. Here it is constantly renewed and clean for every coffee. The taste and smell of the coffee are unaffected. As the water does not stand in the boiler, being constantly re-heated, quality is not affected.
Thermal stability. Quality in cup. Thanks to its high capacity and internal pipe measuring over a metre long. Optimised with electronic temperature control.
100% food-safe. AISI 316 stainless steel water circuit. No metal migration in water.
Less limescale build-up. Easy-to-clean stainless steel circuit reduces limescale build-up.
Steam. Unlimited steam supply. Constant pressure. No damage to the heating element caused by low water levels. Reliability and quality.

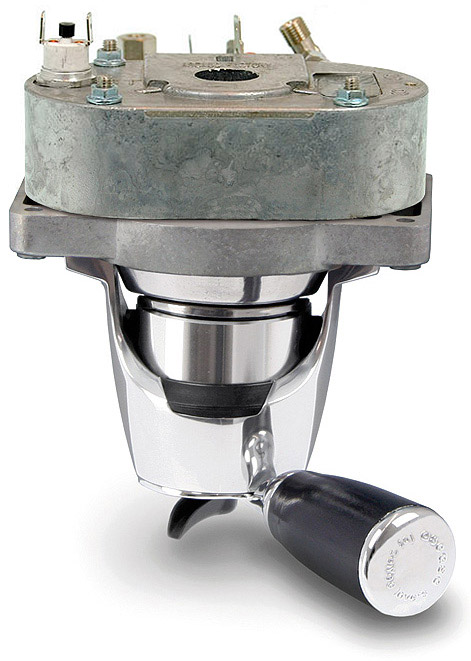

Fixed filter holder (coffee pods only)

Our fixed filter-holder system features an exclusive patented design which allows ease of use and superb ESE coffee pod removal. The thermoblock also makes unlimited steam production possible.

ESE coffee pods

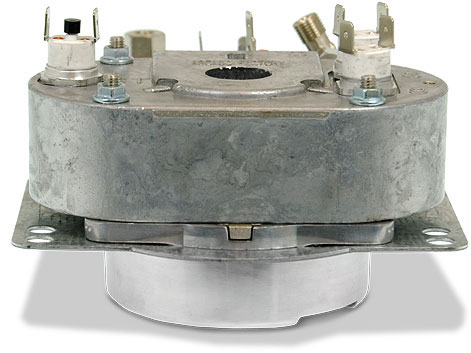

Mobile filter holder (versatile)

This system allows the use of both ground coffee and ESE coffee pods. The thermoblock also makes unlimited steam production possible.

Ground coffee

ESE coffee pods

Coffee capsule (OPTIONAL)

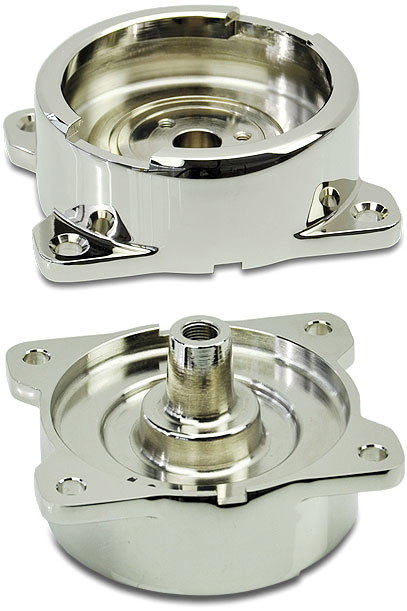

New solid hood

Coffee group is manufactured lead free brass.

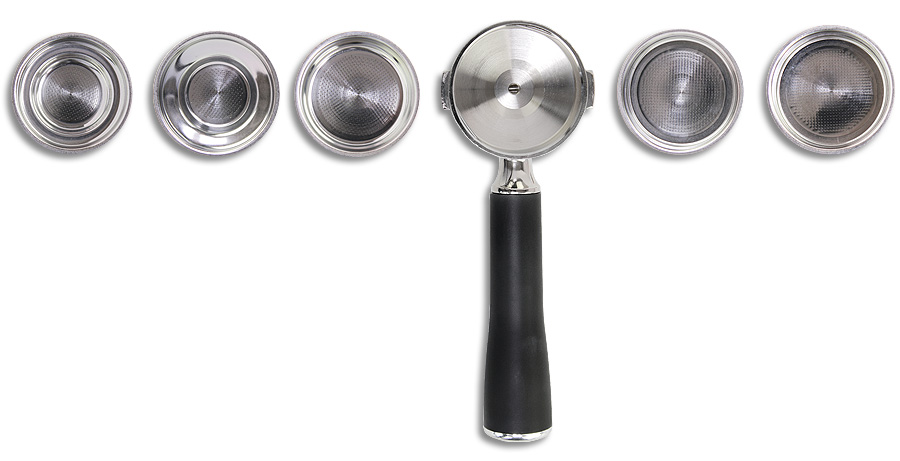

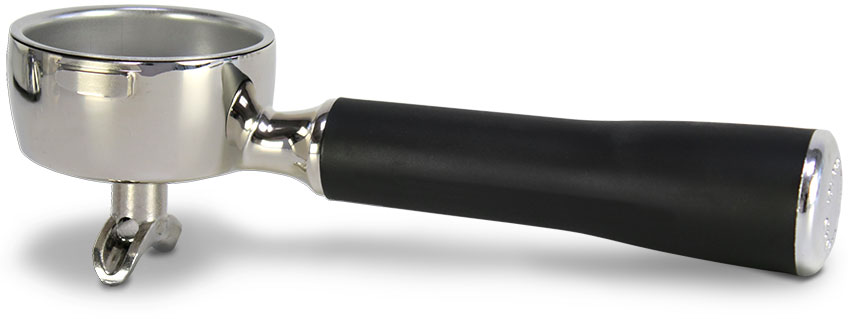

Filter holders and professional filters

Following the Ascaso philosophy of transferring professional components from the espresso coffee world to the home, all our machines feature a nickel-plated brass filter holder with stainless steel filter (for 1 or 2 coffees) and a special filter for ESE coffee pods.

As well as the traditional filters, Dream features the latest coffee-making technology, with the new 'super-froth' filter for an extra-frothy espresso. These special pressurised filters for 1 or 2 cups ensure the frothiest coffee regardless of the coffee blend or grinding method used.

5 professional filters standard (2 traditional, 2 pressurized, 1 monodose E.S.E.)

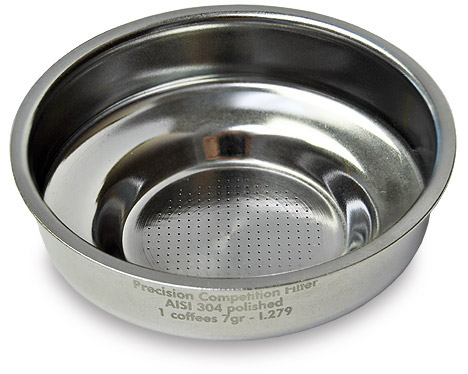

Just filters?

The coffee filters on all our machines are of the very highest quality. Quality materials (AISI 304) and manufacturing.
Our cutting-edge production process guarantees optimum results time after time. Filter by filter. Hole by hole. If not, there will be significant differences in the cup and system changes (over-/under-dispensing).

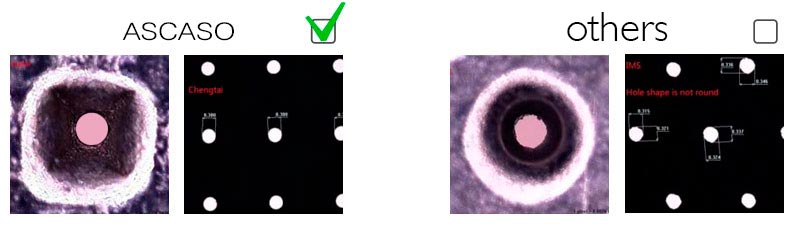

The circular perforations are totally uniform and always the same size (maximum tolerance of 0.02 mm difference between one hole and the next).
Its design (a geometric pyramid for the holes and a 94º angle) guarantees uniform dispensing and reduces possible sediment in the coffee and the blocking of the holes.

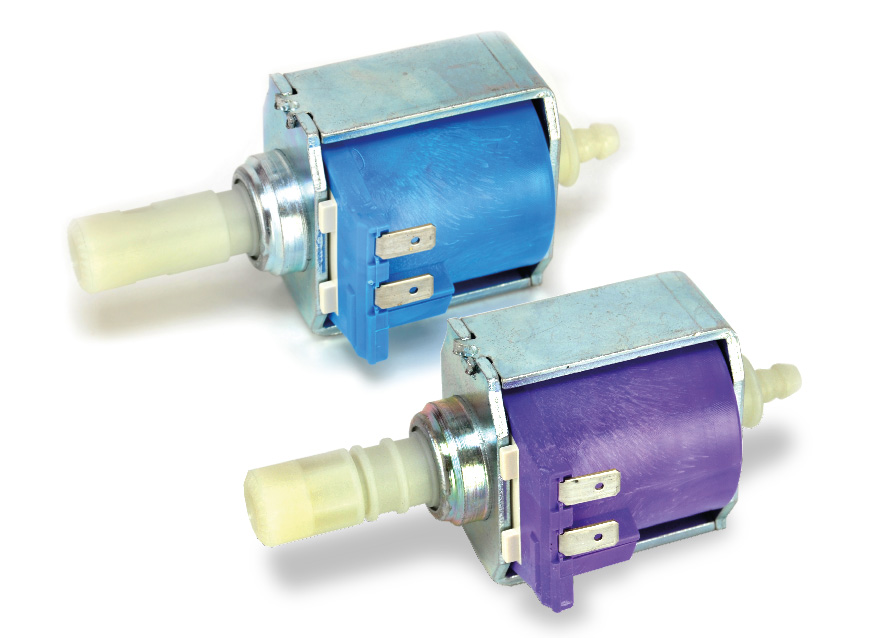

Pump 20 bar

The professional water pump passes water through the coffee at the correct pressure to extract maximum aroma, flavour and organoleptic characteristics.

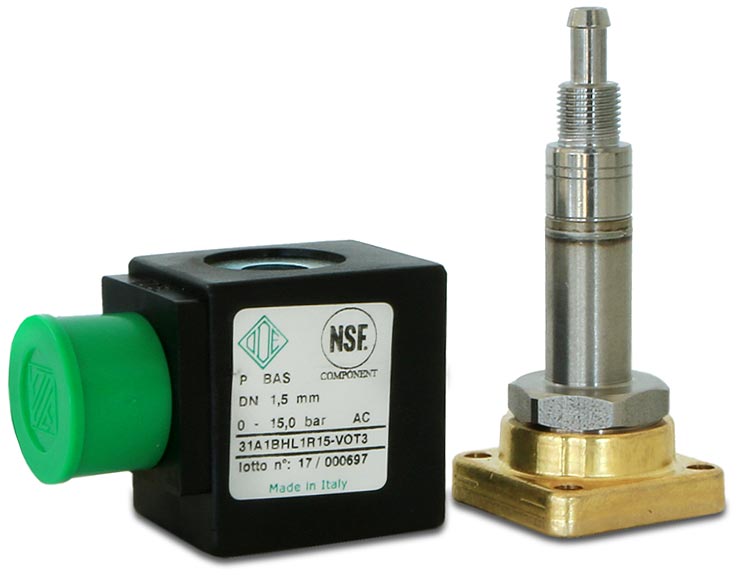

3-way solenoid valve

This type of valve allows the machine to offer dry dispensing, eliminating the final drips and preventing over-pressurisation. Made in all cases of lead-free brass (OT 57) and stem of AISI316 stainless steel.

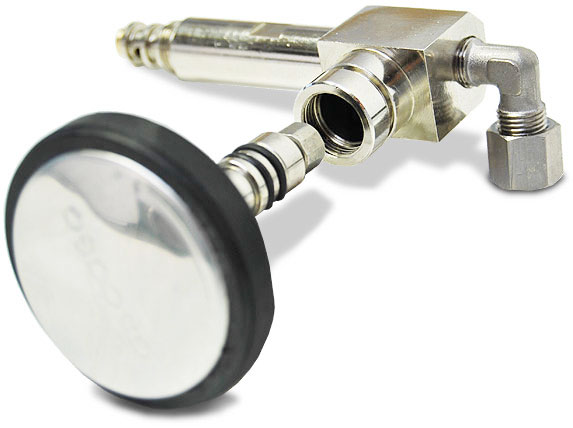

Professional steam valve

New, exceptional quality. Highly durable. Simple and inexpensive to repair.
Viton® gasket closure system.

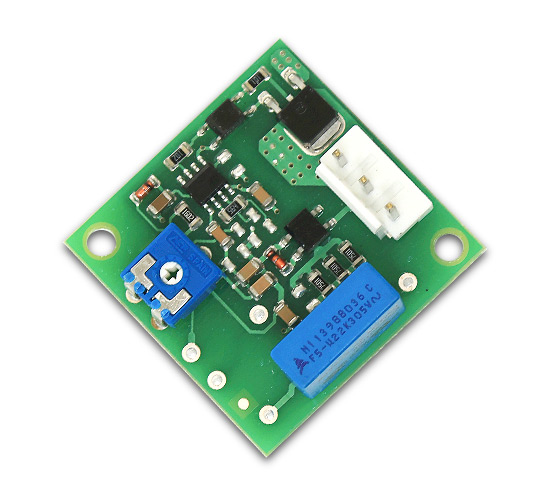

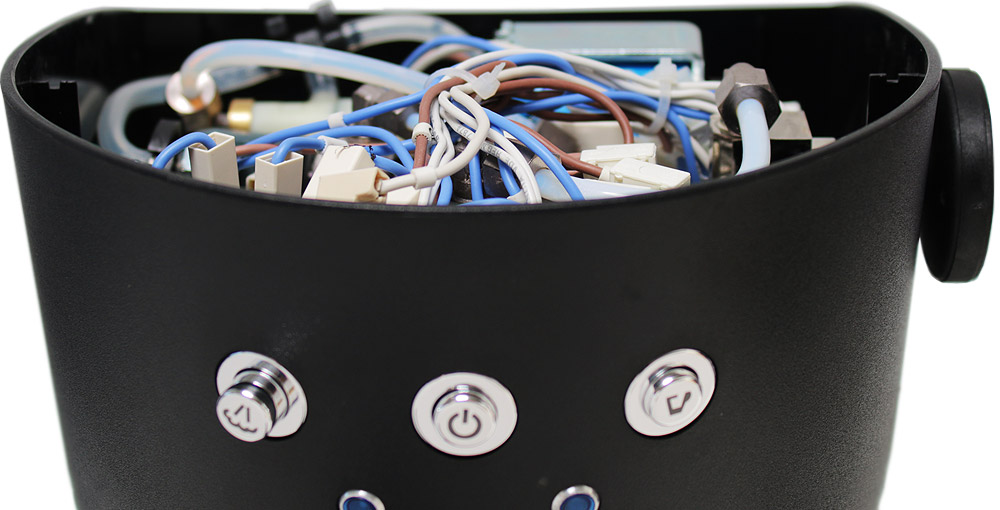

Electronic technology

Cutting-edge electronic components. 'Tropicalized' chipset. Intelligent steam management in the thermoblock.
